Rod Machado’s Private/Commercial Pilot Handbook
      11-6

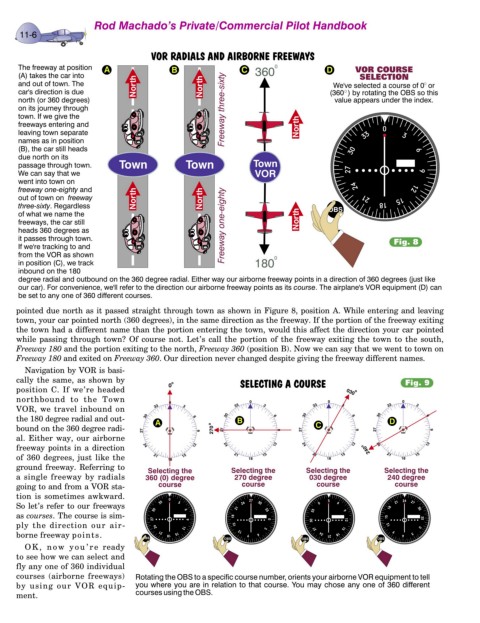

                                                                                                    Fig. 8








     pointed due north as it passed straight through town as shown in Figure 8, position A. While entering and leaving
     town, your car pointed north (360 degrees), in the same direction as the freeway. If the portion of the freeway exiting
     the town had a different name than the portion entering the town, would this affect the direction your car pointed
     while passing through town? Of course not. Let’s call the portion of the freeway exiting the town to the south,
     Freeway 180 and the portion exiting to the north, Freeway 360 (position B). Now we can say that we went to town on
     Freeway 180 and exited on Freeway 360. Our direction never changed despite giving the freeway different names.
       Navigation by VOR is basi-
     cally the same, as shown by                                                                       Fig. 9
     position C. If we’re headed
     northbound to the Town
     VOR, we travel inbound on
     the 180 degree radial and out-
     bound on the 360 degree radi-
     al. Either way, our airborne
     freeway points in a direction
     of 360 degrees, just like the
     ground freeway. Referring to
     a single freeway by radials
     going to and from a VOR sta-
     tion is sometimes awkward.
     So let’s refer to our freeways
     as courses. The course is sim-
     ply the direction  our air-
     borne freeway points.
       OK, now you’re ready
     to see how we can select and
     fly any one of 360 individual
     courses (airborne freeways)
     by using our VOR equip-
     ment.
