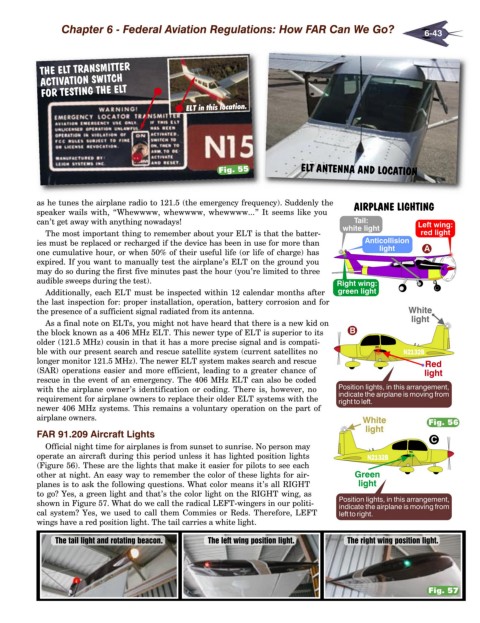

Chapter 6 - Federal Aviation Regulations: How FAR Can We Go?                                6-43




           THE ELT TRANSMITTER
           ACTIVATION SWITCH
           FOR TESTING THE ELT

                                                ELT in this location.








                                                        Fig. 55              ELT ANTENNA AND LOCATION



          as he tunes the airplane radio to 121.5 (the emergency frequency). Suddenly the
          speaker wails with, “Whewwww, whewwww, whewwww...” It seems like you
          can’t get away with anything nowadays!
            The most important thing to remember about your ELT is that the batter-
          ies must be replaced or recharged if the device has been in use for more than
          one cumulative hour, or when 50% of their useful life (or life of charge) has
          expired. If you want to manually test the airplane’s ELT on the ground you
          may do so during the first five minutes past the hour (you’re limited to three
          audible sweeps during the test).
            Additionally, each ELT must be inspected within 12 calendar months after
          the last inspection for: proper installation, operation, battery corrosion and for
          the presence of a sufficient signal radiated from its antenna.
            As a final note on ELTs, you might not have heard that there is a new kid on
          the block known as a 406 MHz ELT. This newer type of ELT is superior to its
          older (121.5 MHz) cousin in that it has a more precise signal and is compati-
          ble with our present search and rescue satellite system (current satellites no
          longer monitor 121.5 MHz). The newer ELT system makes search and rescue
          (SAR) operations easier and more efficient, leading to a greater chance of
          rescue in the event of an emergency. The 406 MHz ELT can also be coded
          with the airplane owner’s identification or coding. There is, however, no
          requirement for airplane owners to replace their older ELT systems with the
          newer 406 MHz systems. This remains a voluntary operation on the part of
          airplane owners.
                                                                                                             Fig. 56
          FAR 91.209 Aircraft Lights
            Official night time for airplanes is from sunset to sunrise. No person may
          operate an aircraft during this period unless it has lighted position lights
          (Figure 56). These are the lights that make it easier for pilots to see each
          other at night. An easy way to remember the color of these lights for air-
          planes is to ask the following questions. What color means it’s all RIGHT
          to go? Yes, a green light and that’s the color light on the RIGHT wing, as
          shown in Figure 57. What do we call the radical LEFT-wingers in our politi-
          cal system? Yes, we used to call them Commies or Reds. Therefore, LEFT
          wings have a red position light. The tail carries a white light.
               The tail light and rotating beacon.   The left wing position light.      The right wing position light.






                                                                                                             Fig. 57
