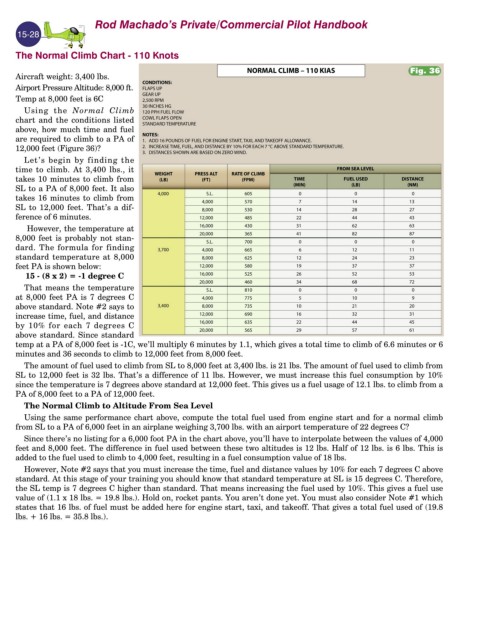

Rod Machado’s Private/Commercial Pilot Handbook
     15-28

     The Normal Climb Chart - 110 Knots

                                                               NORMAL CLIMB – 110 KIAS                  Fig. 36
     Aircraft weight: 3,400 lbs.
                                     CONDITIONS:
     Airport Pressure Altitude: 8,000 ft.   FLAPS UP
                                     GEAR UP
     Temp at 8,000 feet is 6C        2,500 RPM
                                     30 INCHES HG
       Using the  Normal Climb       120 PPH FUEL FLOW
     chart and the conditions listed   COWL FLAPS OPEN
                                     STANDARD TEMPERATURE
     above, how much time and fuel   NOTES:
     are required to climb to a PA of   1.  ADD 16 POUNDS OF FUEL FOR ENGINE START, TAXI, AND TAKEOFF ALLOWANCE.
     12,000 feet (Figure 36)?        2.  INCREASE TIME, FUEL, AND DISTANCE BY 10% FOR EACH 7 °C ABOVE STANDARD TEMPERATURE.
                                     3.  DISTANCES SHOWN ARE BASED ON ZERO WIND.
       Let’s begin by finding the
     time to climb. At 3,400 lbs., it                                                 FROM SEA LEVEL
                                        WEIGHT    PRESS ALT  RATE OF CLIMB
     takes 10 minutes to climb from      (LB)       (FT)      (FPM)        TIME        FUEL USED      DISTANCE
     SL to a PA of 8,000 feet. It also   4,000       S.L.     605          (MIN)         (LB)          (NM)
                                                                            0
                                                                                          0
                                                                                                         0
     takes 16 minutes to climb from                 4,000     570           7             14            13
     SL to 12,000 feet. That’s a dif-               8,000     530          14             28            27
     ference of 6 minutes.                         12,000     485          22             44            43
                                                   16,000     430          31             62            63
        However, the temperature at
                                                   20,000     365          41             82            87
     8,000 feet is probably not stan-
                                                     S.L.     700           0             0              0
     dard. The formula for finding       3,700      4,000     665           6             12            11
     standard temperature at 8,000                  8,000     625          12             24            23
     feet PA is shown below:                       12,000     580          19             37            37
       15 - (8 x 2) = -1 degree C                  16,000     525          26             52            53
                                                   20,000     460          34             68            72
       That means the temperature                    S.L.     810           0             0              0
     at 8,000 feet PA is 7 degrees C                4,000     775           5             10             9
     above standard. Note #2 says to     3,400      8,000     735          10             21            20
     increase time, fuel, and distance             12,000     690          16             32            31
                                                   16,000     635          22             44            45
     by 10% for each 7 degrees C
                                                   20,000     565          29             57            61
     above standard. Since standard
     temp at a PA of 8,000 feet is -1C, we’ll multiply 6 minutes by 1.1, which gives a total time to climb of 6.6 minutes or 6
     minutes and 36 seconds to climb to 12,000 feet from 8,000 feet.
       The amount of fuel used to climb from SL to 8,000 feet at 3,400 lbs. is 21 lbs. The amount of fuel used to climb from
     SL to 12,000 feet is 32 lbs. That’s a difference of 11 lbs. However, we must increase this fuel consumption by 10%
     since the temperature is 7 degrees above standard at 12,000 feet. This gives us a fuel usage of 12.1 lbs. to climb from a
     PA of 8,000 feet to a PA of 12,000 feet.
       The Normal Climb to Altitude From Sea Level
       Using the same performance chart above, compute the total fuel used from engine start and for a normal climb
     from SL to a PA of 6,000 feet in an airplane weighing 3,700 lbs. with an airport temperature of 22 degrees C?
       Since there’s no listing for a 6,000 foot PA in the chart above, you’ll have to interpolate between the values of 4,000
     feet and 8,000 feet. The difference in fuel used between these two altitudes is 12 lbs. Half of 12 lbs. is 6 lbs. This is
     added to the fuel used to climb to 4,000 feet, resulting in a fuel consumption value of 18 lbs.
       However, Note #2 says that you must increase the time, fuel and distance values by 10% for each 7 degrees C above
     standard. At this stage of your training you should know that standard temperature at SL is 15 degrees C. Therefore,
     the SL temp is 7 degrees C higher than standard. That means increasing the fuel used by 10%. This gives a fuel use
     value of (1.1 x 18 lbs. = 19.8 lbs.). Hold on, rocket pants. You aren’t done yet. You must also consider Note #1 which
     states that 16 lbs. of fuel must be added here for engine start, taxi, and takeoff. That gives a total fuel used of (19.8
     lbs. + 16 lbs. = 35.8 lbs.).
